Homebrew Blood Diamond Carbine

Editors Note: This article was first published on October 6, 2019 at the Soldier Systems Daily blog.(http://soldiersystems.net/2019/10/06/homebrew-blood-diamond-carbine-by-frank-woods/)

I’ve been wanting to do a Blood Diamond CAR-15/XM177/GAU-5/whatever you’d call it for a long time now, and with Brownells, Inc. putting a bunch of parts I needed for it within reach via their Retro line, I was finally able to get to it.

There are some obvious inconsistencies between mine and the movie version (pics included for comparison,) primarily the light (I had extra M600Us laying around and didn’t feel like paying extra money for the lesser Surefire 660 light,) and the Teal Blue Bravo PDQ ambi bolt catch/release (because it’s 2019 and none of my USGI forged lowers don’t have one, for sake of consistency.)

I used Fulton Armory receivers since they make the A2 upper receiver with M4 feed ramps, and went with one of their lowers to have a matched set. Barrel is a Brownell’s Retro Series 10.3″ 1/7 twist, and the stock and A1 grip come from the Retro line also. I had the faux moderator laying in the parts bin for YEARS waiting for the other parts to come along, well before the Brownell’s Retro line existed.

Aimpoint is a PRO 2MOA that didn’t have a rifle to sit on, but since it looks externally the same as the OG Aimpoint CompM2, fuck it, why not. It sits on an ARMS #2 carry handle rail mount, in an Aimpoint SRW-L mount I procured with help from a friend.

27F0FD8E-D81F-4263-8DCF-6CF824750BDC

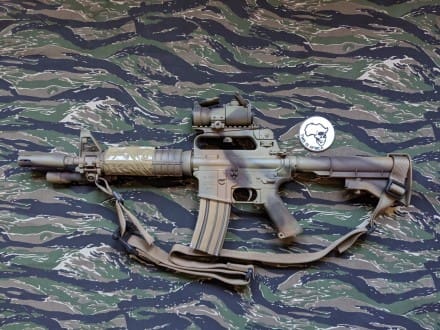

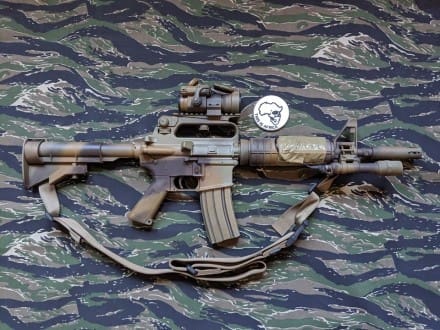

I did my due diligence trying to replicate the patterning of the rattle can colors as they appeared on the movie gun itself, the side we could see anyway. Colors used were Aervoe Olive Drab, Field Drab, and a little bit of Marine Corps Green, and the Dark Brown was either Krylon or Rust-Oleum, I don’t remember which. I misted it with some ODG & MCG once the overall painting was finished. Since I couldn’t find OD Green camo form wrap in stock anywhere I went with olive drab USGI style duct tape to secure the light’s ST-07 switch to the rifle.

EA47F0B8-99F5-4838-97B1-36C34652C437

The Surefire M14 style light mount clamp had to be shaved down on the grinder wheel a bit to fit it through the slot in the FSB, and I didn’t need the M10 ring to secure the light since the integrated 1913 mount on the Scout body clamped onto the light mount’s rail perfectly.

Magazine is an old ass pre-ban USGI mag that has this cool patina to it. I went with a Magpul MS1 sling because the tension adjustment is second nature to me being that I’ve standardized on this sling otherwise. I *tried* to make it work with an R4 sling but unless I ONLY had the sling around my neck it just fuckin sucked because of the way the fabric would dig into my shoulder when the sling twisted.

I guess I can call this one the “Danny Archer.” Yah yah ?
